Digital Clamp Meter AC/DC Voltage Resistance Frequency DM6266 - Batteries Incl.

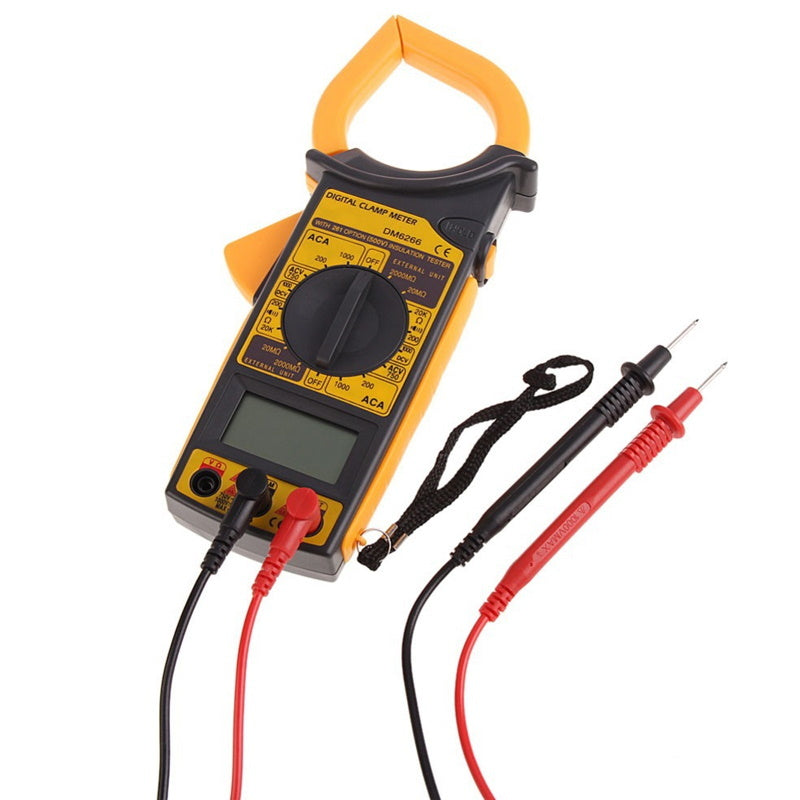

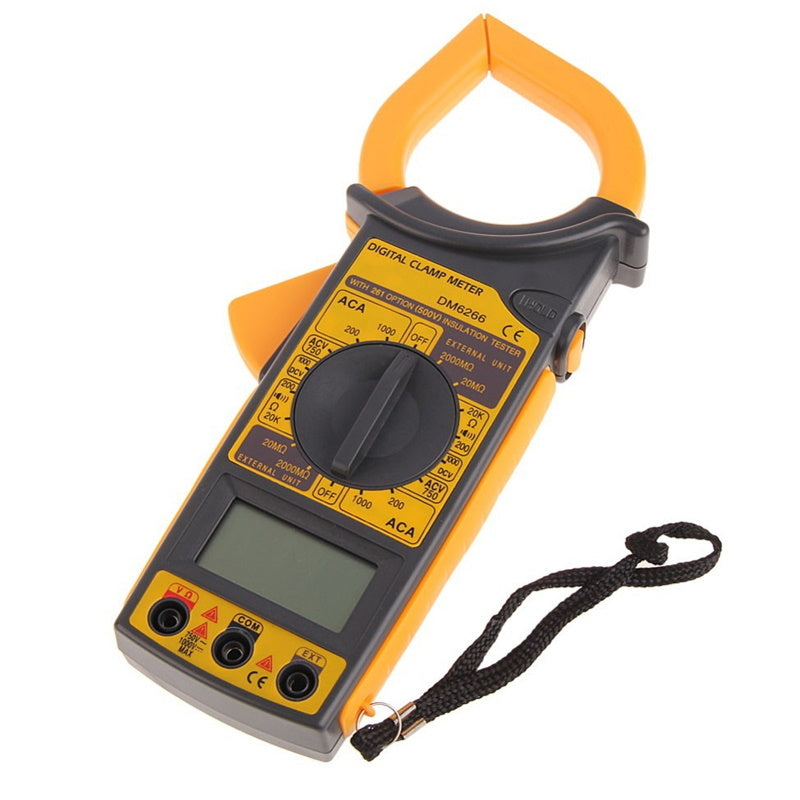

DM6266 multifunction digital clamp meter

• Fully functional overload protection
• Measures AC current, AC voltage, DC voltage, resistance, frequency, Temperature
• Portable design, one-hand operation, easy to use
• Clamp with a double insulation protection, enhanced anti-jamming
• Non-contact measurement, to improve the measurement safety.

Specifications:

• DC voltage: 1000V ± (0.8% + 2)
• AC voltage: 750V ± (1.2% + 4)
• AC current: 200A / 1000A ± (2.5% / 3.0% + 5)
• Resistance: 200Ω / 20kΩ ± (1.0% + 1)
• Continuity alarm
• Low voltage display
• Data Hold
• Input impedance: 10MΩ
• Sampling frequency: 3 times / s
• AC Frequency: (40-400) Hz
• Manual range
• Maximum display: 1999
• Jaw opening: 50mm
• Power: 9V (6F22) Battery x 1
• Colors: body - dark gray
